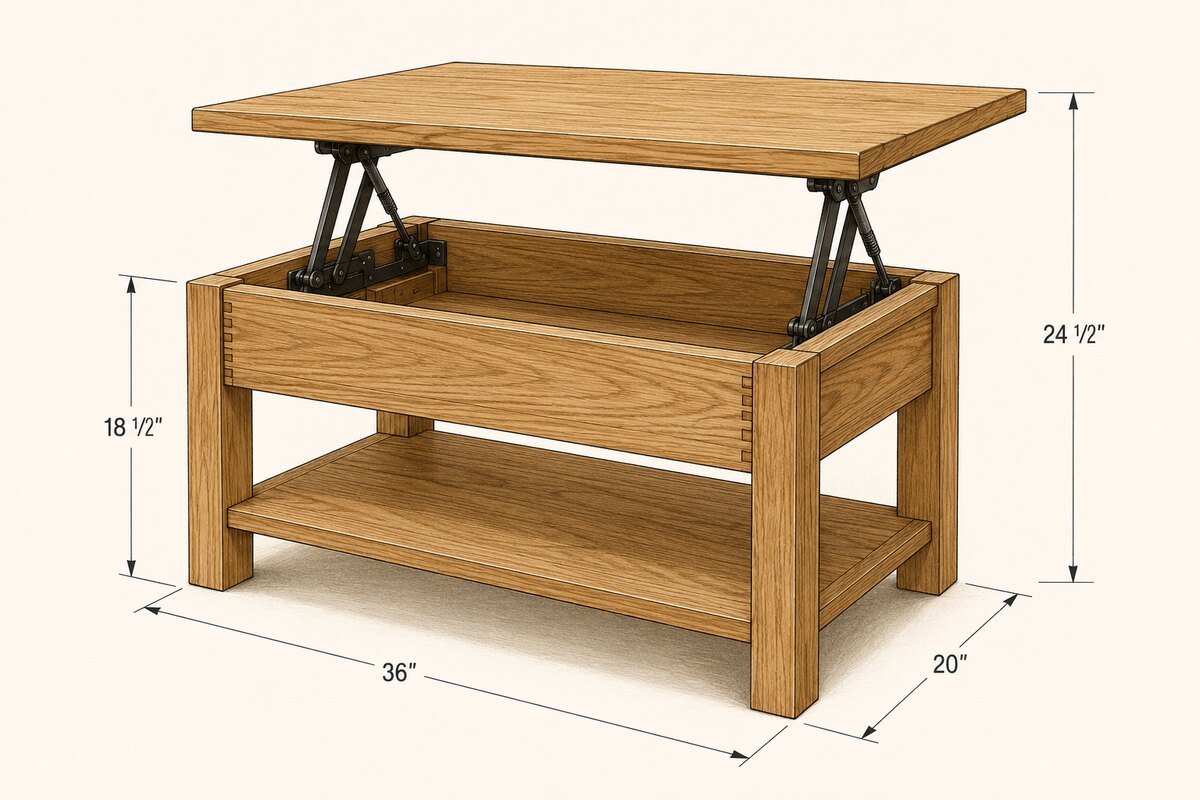

How to Build a Lift-Top Coffee Table with Hidden Storage
A lift top coffee table hidden storage design combines a useful raised work surface with concealed space for everyday living-room items. This guide explains the box, top and mechanism.
Materials and tools
- Flat cabinet-grade plywood or straight, dry lumber
- Project-appropriate screws, wood glue and hardware
- Circular saw or table saw, drill/driver and square
- Clamps, measuring tools and random-orbit sander
- Eye and hearing protection
Materials for lift top coffee table hidden storage
Stable sheet material and correctly rated hardware help a lift top coffee table hidden storage project move smoothly without twisting the top.
Lift top coffee table hidden storage: before you begin
Plan the lift top coffee table hidden storage around the exact mechanism, closed gaps, open height and safe clearance from seating.
Measure the available space and mark the finished footprint with masking tape. Confirm access, movement and hardware clearances before buying material. Read the complete plan once, label every part and choose one reference face for all measurements.
Three checks that prevent rework
- Confirm actual material thickness and the finished outside dimensions.
- Mark related parts from the same reference face and edge.
- Test moving hardware and critical joints on scrap before final assembly.
Planning the lift mechanism and clearances
Choose the lift mechanism before cutting the box. Confirm its closed height, travel and required side clearance, then draw the pivot path at full scale so the top cannot strike the base.
Work from one reliable reference face and compare the part with the drawing before moving on. Check mating pieces together rather than trusting repeated measurements. A short dry fit here is faster than correcting accumulated errors after assembly.

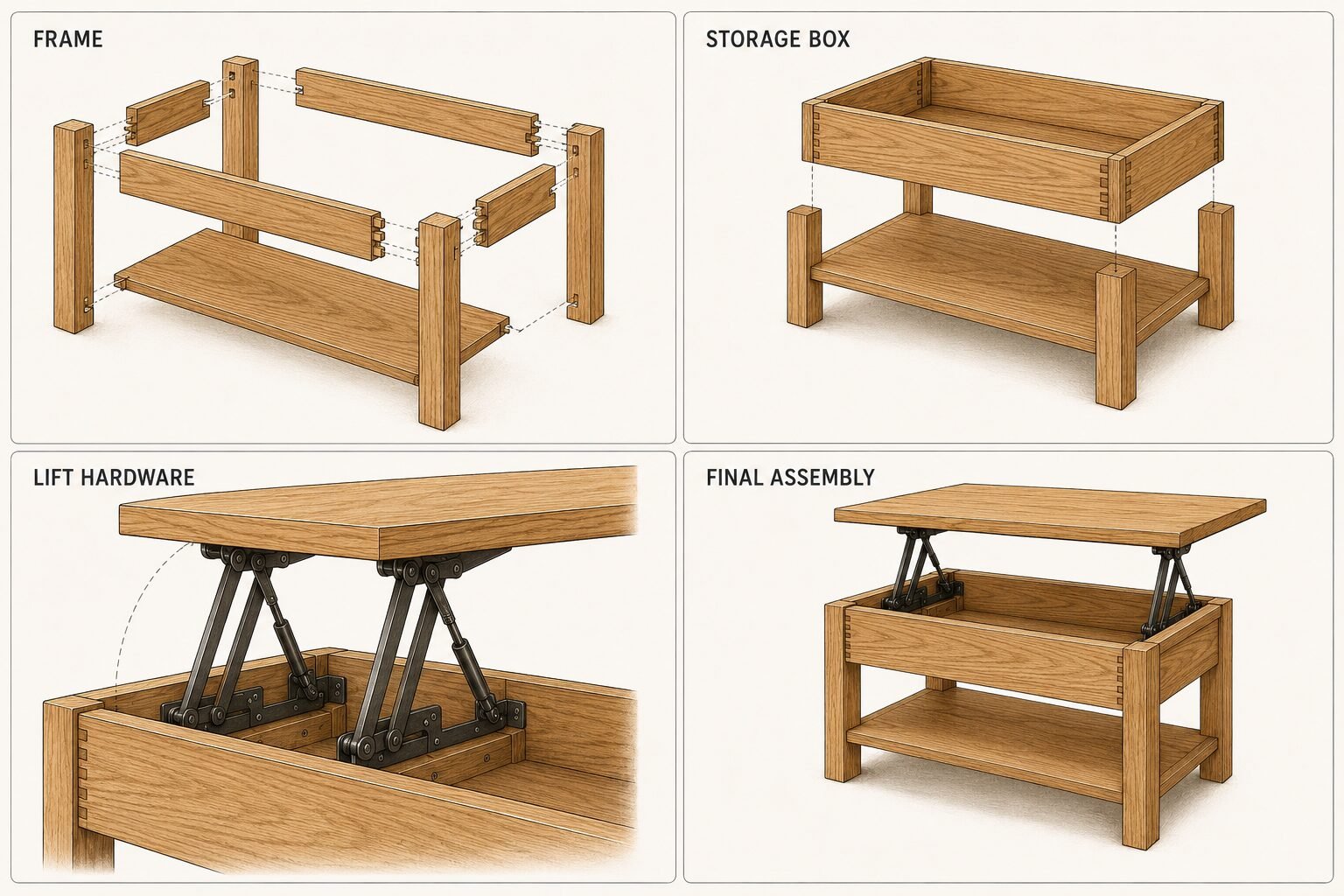

Building the base and lower shelf
Build two square leg frames and connect them with aprons. Add the lower shelf only after comparing both diagonals; equal diagonals prevent a twisted base and uneven feet.
Work from one reliable reference face and compare the part with the drawing before moving on. Check mating pieces together rather than trusting repeated measurements. A short dry fit here is faster than correcting accumulated errors after assembly.
Constructing the hidden storage box
Make the storage box as a rigid shallow cabinet. Keep screws away from the hardware zone and leave enough finger clearance beneath the raised top.
Work from one reliable reference face and compare the part with the drawing before moving on. Check mating pieces together rather than trusting repeated measurements. A short dry fit here is faster than correcting accumulated errors after assembly.
Installing and aligning the lift-top hardware
Support the top while fitting both mechanisms. Use identical spacers on each side, install temporary screws first and cycle the top slowly before final tightening.
Work from one reliable reference face and compare the part with the drawing before moving on. Check mating pieces together rather than trusting repeated measurements. A short dry fit here is faster than correcting accumulated errors after assembly.
Sanding, finishing and safety checks
Round exposed edges, sand through 120, 180 and 220 grit, and apply a durable furniture finish. Recheck every fastener after the first week of use.
Work from one reliable reference face and compare the part with the drawing before moving on. Check mating pieces together rather than trusting repeated measurements. A short dry fit here is faster than correcting accumulated errors after assembly.
A lift top coffee table hidden storage build can bind when the mechanism positions differ, the box is not square or the top overhang blocks its travel.
Common mistakes to avoid
- Starting before checking the available space, finished dimensions and material thickness.
- Measuring connected parts from different reference edges.
- Skipping a complete dry fit before glue or final hardware installation.
- Forcing an assembly into square instead of finding the inaccurate part.
- Ignoring the instructions supplied with tools and hardware.
Final quality check
Inspect the work from every side on a flat surface. Confirm that moving parts travel freely, fasteners are secure, exposed edges feel smooth and the finish is fully cured. Recheck critical fixings after the first period of normal use.
Safety
Wear suitable eye and hearing protection, support every workpiece securely and disconnect power before changing blades or bits. Use dust collection or a suitable respirator where required. Ask a qualified person to check wall-mounted or load-bearing work whenever the substrate, fixing method or expected load is uncertain.
This lift top coffee table hidden storage plan can be resized only after checking the hinge geometry, balance, finger clearances and new panel spans.
For general machine and workshop hazards, consult the OSHA woodworking safety guide.
Frequently asked questions
Can the dimensions be changed?
Yes, but update every connected part together. Recheck hardware clearances, symmetry, material spans and the order of assembly before cutting.
Is this suitable for a beginner?
A careful beginner can use this guide by practicing critical cuts on scrap and dry-fitting each stage. Ask an experienced woodworker to review structural, moving or wall-mounted connections.
